Product Description

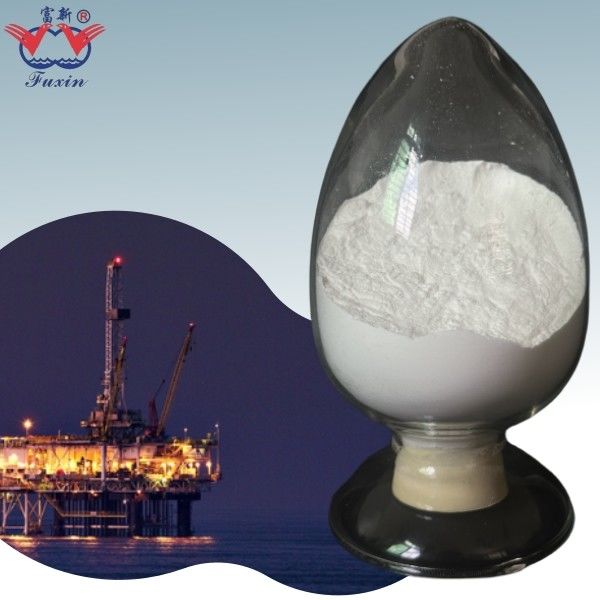

API 13A CMC LV LVT Carboxymethyl Cellulose Low Viscosity
Product Description
Technical Specifications of HV-CMC, LV-CMC
| Specifications |
Performance Test |
| Items |
Indicators |
| In distilled water |
In salt water |
In saturated water |
| Base Mud |
Filtration (ml) |
60±10 |
90±10 |
100±10 |
| Apparent Viscosity (CPS) |
≤6 |
≤6 |
≤10 |
| PH |
8.0 ± 1.0 |
8.0 ± 1.0 |
7.5 ± 1.0 |
| HV-CMC |
Yield of 15CPS (m3/t) |
≥160 |
≥130 |
≥140 |
| LV-CMC |
Filtration:10ml/h |
Addition (g/l) |
/ |
≤7.0 |
≤10.0 |
| Apparent Viscosity (CPS) |
/ |
≤4 |
≤6 |
| Remarks |
The performance test of HV-CMC as per OCMA DFCP-7 methods.
The performance test of LV-CMC as per OCMA DFCP-2 methods. |
Technical Specifications of CMC-HVT, CMC-LVT
| Type |
Viscometer dial reading at 600r/min. |
Filtration (ml) |
| In distilled water |
In 40g/L salt water |
In saturated salt water |
| CMC-HVT |
≥30 |
≥30 |
≥30 |
≤10 |
| CMC-LVT |
≤90 |
/ |
/ |
≤10 |
| Remarks |
Conforms to API Spec.13A test methods |
Applications in Fresh Water, Sea Water and Saturated Water
1.Improves filtercake lubricity.
2.Stabilizes fluid rheology.
3.Cost effective, small usage, high yield.
4.Excellent salt tolerance and anti-bacteria property, convenient to use.
5.Outstanding API filtration control and suspending ability.Improve the viscosity significantly.
6.Environment friendly
Applications in Drilling Fluid
1.Protect the wall of oil well, prevent mud flowing away and carry crumbs.
2.Protect drilling bit and increase drilling speed.
3.In low solid or none solid drilling fluid, it can reduce the fluid loss and the thickness of the mud cake obviously.
4.Strong inhibition effect to shale swelling and disintegration.
Applications in Fixing Fluid
1.Protect the wall of the oil well, stop the fluid entering into the pores or cracks.
2.Control the fluid viscosity, heavy object suspension, and prevent fluid loss.
When CMC is used in fracturing fluid, it can bring 'stuffing' into the cracks of oil well in high efficiency and establish osmosis channel, which can effectively prevent fluid entering into oil well structure, reduce fluid loss, and lower the pressure.
The ultra high viscosity products can replace guar gum, reduce the production cost.
Sales Record of Oil drilling grade CMC
Intertek Test Report for CMC
Packaging & Delivery:
Packaging Details:
1) 25kgs per kraft paper bag, inner PE bag
2) Jumbo bag
3) Palletized, customized available
4)17-20 tons for one 20' FCL.
Delivery Detail:
Shipped in 7-15 days after payment
Company Information:
Fushixin Polymer Fiber (Foshan) Co., Ltd. was established in 2002, locates in Nanhai, Foshan, Guangdong, is a high-tech enterprise which intergrates the research, production and application of CMC (Sodium Carboxymethyl Cellulose), PAC (Polyanionic Cellulose), CMS (Carboxymehtyl Starch) and other cellulose ethers.
Fushixin Polymer Fiber (Foshan) Co., Ltd. has a powerful processing ability of cellulose, develops and utilizes new technology to explore more market opportunities, takes advantage of the integral superiority of modern chemical industry, adopts the latest technology, materials and equipments. Our company is qualified with ISO9001:2008, ISO22000:2005, QS, HALAL, KOSHER, HACCP, FDA ertificates.
The application of our products covers ceramics, oil drilling, fracturing, food, toothpaste, detergent, mining, papermaking, textile printing and dyeing, building materials, battery, welding, etc. We produce the cellulose powder or granulated available, from ultra low viscosity to ultra high viscosity, purity can achieve above 99.5%. All our products live up to the international test and quality standards.
As a trustable and reliable partner, FUSHIXIN is a well known proverbial company in both domestic and international markets. We have established business relations with several hundreds of companies in China and abroad, set up offices in Vietnam and Thailand. Our products have been exported to Southeast Asia, South Asia, Middle East, Middle Asia, Africa, Australia, Europe, America, etc.
Exhibition and Customers Visit Photos:
As one of the biggest manufacturers of CMC (sodium carboxymethyl cellulose) and PAC (Polyanionic cellulose), Fushixin is active in the domestic and foreign market.
F&Q:
Q: Are you trading company or manufacturer ?
A: We are factory. Welcome to visit our plant in your convenient time.
Q: How long is your delivery time ?
A: Generally it is 2-7 days if the cargo is in stock, or 15-20 days if the goods are not in stock. It is according to quantity.
Q: Do you provide samples ?
A: Yes, free trial package of 0.5 kg sample. Please send us an email describing your usage plan. Free sample is for manufacture only and not for R&D purpose.
Q: What is your terms of payment ?
A: 30% T/T in advance , balance against scan copy of B/L. L/C acceptable.
